型號 |
并聯電容 器組容量 |

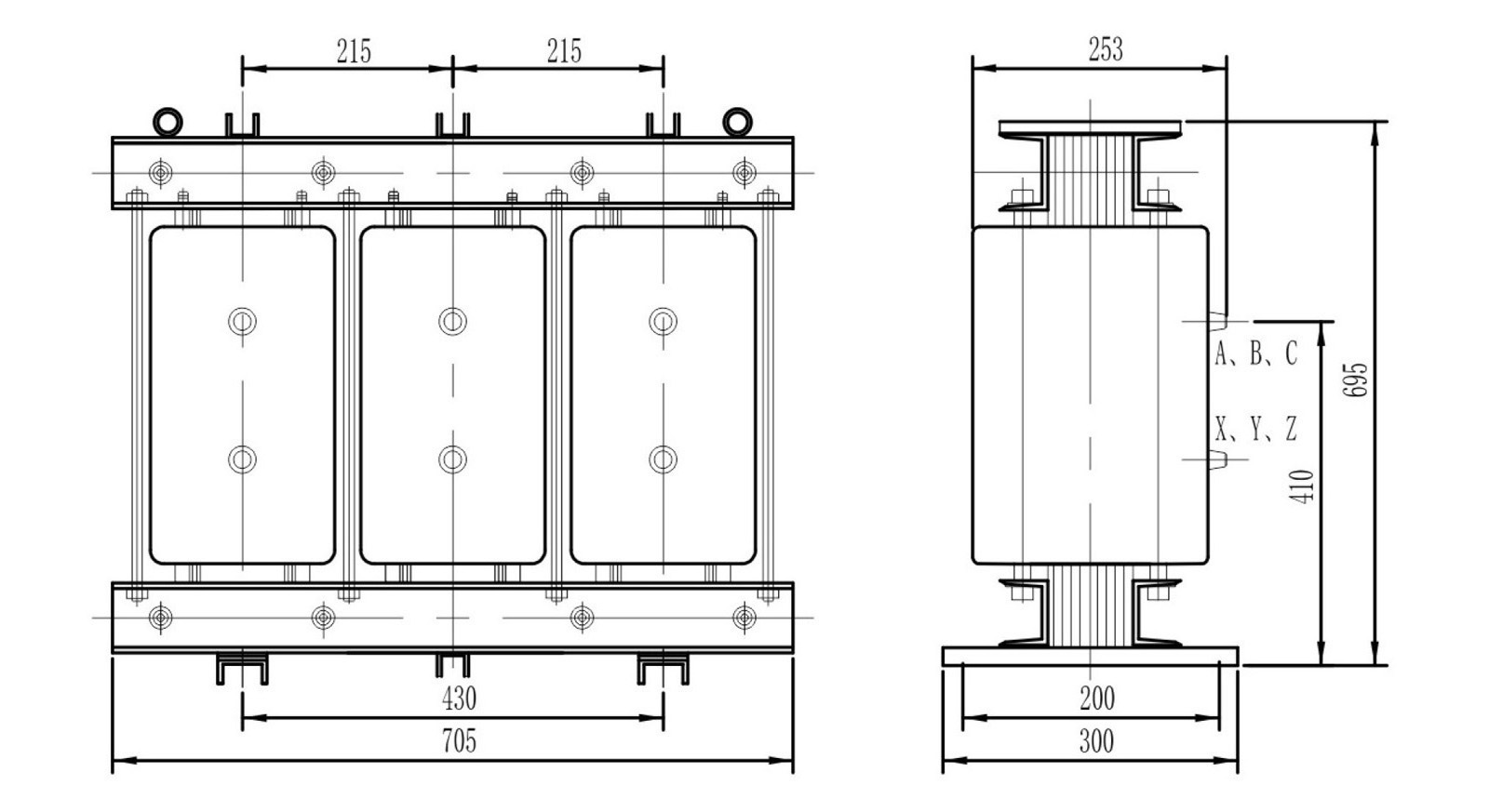

電容額定電壓 | 額定電抗率 | 額定電容 | 額定電壓 | 額定電流 | 額定電抗 | 損耗 | 外形尺寸圖(見附圖) | |||||
a | b | c | d | e | f | |||||||||
(Kvar) | (kv) | (%) | (kvar) | (V) | (A) | (Ω) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
CKSC-15/10-5 | 300 | 11√3 | 5 | 15 | 317.5 | 15.75 | 20.159 | 0.335 | 280 | 460 | 900 | 455 | 560 | 830 |
CKSC-18/10-6 | 11√3 | 6 | 18 | 381.5 | 15.74 | 24.212 | 0.385 | 290 | 460 | 960 | 464 | 560 | 940 | |
CKSC-36/10-12 | 12√3 | 12 | 36 | 831.4 | 14.43 | 57.616 | 0.647 | 305 | 460 | 980 | 480 | 560 | 960 | |
CKSC-30/10-5 | 600 | 11√3 | 5 | 30 | 317.5 | 31.50 | 10.079 | 0.564 | 300 | 460 | 980 | 480 | 560 | 960 |
CKSC-36/10-6 | 11√3 | 6 | 36 | 381.1 | 31.49 | 12.102 | 0.647 | 300 | 460 | 980 | 480 | 560 | 1020 | |
CKSC-72/10-12 | 12√3 | 12 | 72 | 831.4 | 28.87 | 28.798 | 1.087 | 300 | 460 | 1040 | 510 | 560 | 1120 | |
CKSC-45/10-5 | 900 | 11√3 | 5 | 45 | 317.5 | 47.24 | 6.721 | 0.764 | 330 | 460 | 1000 | 488 | 560 | 1020 |
CKSC-54/10-6 | 11√3 | 6 | 54 | 381.1 | 47.23 | 8.069 | 0.876 | 310 | 460 | 1000 | 488 | 560 | 1100 | |
CKSC-108/10-12 | 12√3 | 12 | 108 | 831.4 | 43.30 | 19.201 | 1.474 | 350 | 520 | 1100 | 517 | 620 | 1170 | |
CKSC-60/10-5 | 1200 | 11√3 | 5 | 60 | 317.5 | 62.99 | 5.04 | 0.949 | 320 | 460 | 1020 | 488 | 560 | 1070 |
CKSC-72/10-6 | 11√3 | 6 | 72 | 381.1 | 62.98 | 6.051 | 1.087 | 330 | 460 | 1050 | 509 | 560 | 1090 | |
CKSC-144/10-12 | 12√3 | 12 | 144 | 831.4 | 57.73 | 14.402 | 1.829 | 360 | 520 | 1130 | 526 | 620 | 1265 | |
CKSC-75/10-5 | 1500 | 11√3 | 5 | 75 | 317.5 | 78.74 | 4.032 | 1.121 | 320 | 460 | 1025 | 488 | 560 | 1160 |
CKSC-90/10-6 | 11√3 | 6 | 90 | 381.1 | 78.72 | 4.841 | 1.285 | 340 | 460 | 1085 | 517 | 560 | 1125 | |
CKSC-180/10-12 | 12√3 | 12 | 180 | 831.4 | 72.17 | 11.52 | 2.162 | 370 | 520 | 1160 | 546 | 620 | 1330 | |
CKSC-90/10-5 | 1800 | 11√3 | 5 | 90 | 317.5 | 94.49 | 3.36 | 1.285 | 340 | 460 | 1075 | 509 | 560 | 1120 |
CKSC-108/10-6 | 11√3 | 6 | 180 | 381.1 | 94.46 | 4.035 | 1.474 | 350 | 460 | 1100 | 517 | 560 | 1155 | |
CKSC-216/10-12 | 12√3 | 12 | 216 | 831.4 | 86.60 | 9.6 | 2.479 | 380 | 520 | 1200 | 555 | 620 | 1370 | |
CKSC-105/10-5 | 2100 | 11√3 | 5 | 105 | 317.5 | 110.24 | 2.88 | 1.443 | 340 | 520 | 1080 | 517 | 620 | 1225 |
CKSC-126/10-6 | 11√3 | 6 | 126 | 381.1 | 110.21 | 3.458 | 1.654 | 350 | 520 | 1110 | 526 | 620 | 1270 | |
CKSC-252/10-12 | 12√3 | 12 | 252 | 831.4 | 101.03 | 8.229 | 2.783 | 390 | 520 | 1230 | 565 | 620 | 1390 | |
CKSC-120/10-5 | 2400 | 11√3 | 5 | 120 | 317.5 | 125.98 | 2.52 | 1.595 | 350 | 520 | 1110 | 526 | 620 | 1245 |
CKSC-144/10-6 | 11√3 | 6 | 144 | 381.1 | 125.95 | 3.026 | 1.829 | 350 | 520 | 1110 | 526 | 620 | 1375 | |
CKSC-288/10-12 | 12√3 | 12 | 288 | 831.4 | 115.47 | 7.2 | 3.076 | 400 | 520 | 1255 | 565 | 620 | 1450 |
型號 |
并聯電容 器組容量 |
電容額定電壓 | 額定電抗率 | 額定電容 | 額定電壓 | 額定電流 | 額定電抗 | 損耗 | 外形尺寸圖(見附圖) | |||||
a | b | c | d | e | f | |||||||||
(Kvar) | (kv) | (%) | (kvar) | (V) | (A) | (Ω) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
CKSC-135/10-5 | 2700 | 11√3 | 5 | 135 | 317.5 | 141.73 | 2.240 | 1.743 | 350 | 520 | 1125 | 526 | 620 | 1245 |
CKSC-162/10-6 | 11√3 | 6 | 162 | 381.1 | 141.70 | 2.689 | 1.997 | 360 | 520 | 1150 | 546 | 620 | 1290 | |
CKSC-324/10-12 | 12√3 | 12 | 324 | 831.4 | 129.60 | 6.400 | 3.360 | 410 | 600 | 1300 | 575 | 700 | 1420 | |
CKSC-150/10-5 | 3000 | 11√3 | 5 | 150 | 317.5 | 157.48 | 2.016 | 1.886 | 360 | 520 | 1150 | 546 | 620 | 1275 |
CKSC-180/10-6 | 11√3 | 6 | 180 | 381.1 | 157.44 | 2.421 | 2.162 | 360 | 520 | 1150 | 546 | 620 | 1365 | |
CKSC-360/10-12 | 12√3 | 12 | 360 | 831.4 | 144.33 | 5.760 | 3.636 | 420 | 600 | 1315 | 575 | 700 | 1455 | |
CKSC-165/10-5 | 3300 | 11√3 | 5 | 165 | 317.5 | 173.23 | 1.833 | 2.026 | 360 | 520 | 1165 | 546 | 620 | 1275 |
CKSC-198/10-6 | 11√3 | 6 | 198 | 381.1 | 173.18 | 2.201 | 2.322 | 380 | 520 | 1195 | 555 | 620 | 1315 | |
CKSC-396/10-12 | 12√3 | 12 | 396 | 831.4 | 158.77 | 5.237 | 3.906 | 430 | 600 | 1355 | 583 | 700 | 1450 | |
CKSC-180/10-5 | 3600 | 11√3 | 5 | 180 | 317.5 | 188.98 | 1.680 | 2.162 | 380 | 520 | 1200 | 546 | 620 | 1270 |
CKSC-216/10-6 | 11√3 | 6 | 216 | 381.1 | 188.93 | 2.017 | 2.479 | 390 | 520 | 1225 | 555 | 620 | 1306 | |
CKSC-432/10-12 | 12√3 | 12 | 432 | 831.4 | 173.20 | 4.800 | 4.169 | 430 | 600 | 1360 | 583 | 700 | 1490 | |
CKSC-200/10-5 | 4000 | 11√3 | 5 | 200 | 317.5 | 209.97 | 1.512 | 2.340 | 390 | 520 | 1240 | 555 | 620 | 1230 |
CKSC-240/10-6 | 11√3 | 6 | 240 | 381.1 | 209.92 | 1.815 | 2.683 | 390 | 520 | 1240 | 555 | 620 | 1345 | |
CKSC-480/10-12 | 12√3 | 12 | 480 | 831.4 | 192.45 | 4.320 | 4.512 | 450 | 600 | 1400 | 605 | 700 | 1480 | |
CKSC-210/10-5 | 4200 | 11√3 | 5 | 210 | 317.5 | 220.47 | 1.440 | 2.427 | 400 | 520 | 1255 | 555 | 620 | 1230 |
CKSC-252/10-6 | 11√3 | 6 | 252 | 381.1 | 220.41 | 1.729 | 2.783 | 410 | 520 | 1285 | 565 | 620 | 1280 | |
CKSC-504/10-12 | 12√3 | 12 | 504 | 831.4 | 202.07 | 4.114 | 4.680 | 450 | 600 | 1420 | 605 | 700 | 1480 | |
CKSC-225/10-5 | 4500 | 11√3 | 5 | 225 | 317.5 | 236.22 | 1.344 | 2.556 | 400 | 520 | 1270 | 555 | 620 | 1230 |
CKSC-270/10-6 | 11√3 | 6 | 270 | 381.1 | 236.16 | 1.614 | 2.931 | 410 | 520 | 1290 | 565 | 620 | 1280 | |
CKSC-540/10-12 | 12√3 | 12 | 540 | 831.4 | 216.50 | 3.840 | 4.929 | 450 | 600 | 1420 | 605 | 700 | 1570 | |
CKSC-240/10-5 | 4800 | 11√3 | 5 | 240 | 317.5 | 251.97 | 1.260 | 2.683 | 400 | 520 | 1270 | 555 | 620 | 1340 |
CKSC-288/10-6 | 11√3 | 6 | 288 | 381.1 | 251.90 | 1.513 | 3.076 | 410 | 520 | 1290 | 565 | 620 | 1400 | |
CKSC-576/10-12 | 12√3 | 12 | 576 | 831.4 | 230.94 | 3.600 | 5.173 | 450 | 600 | 1420 | 605 | 700 | 1565 |
